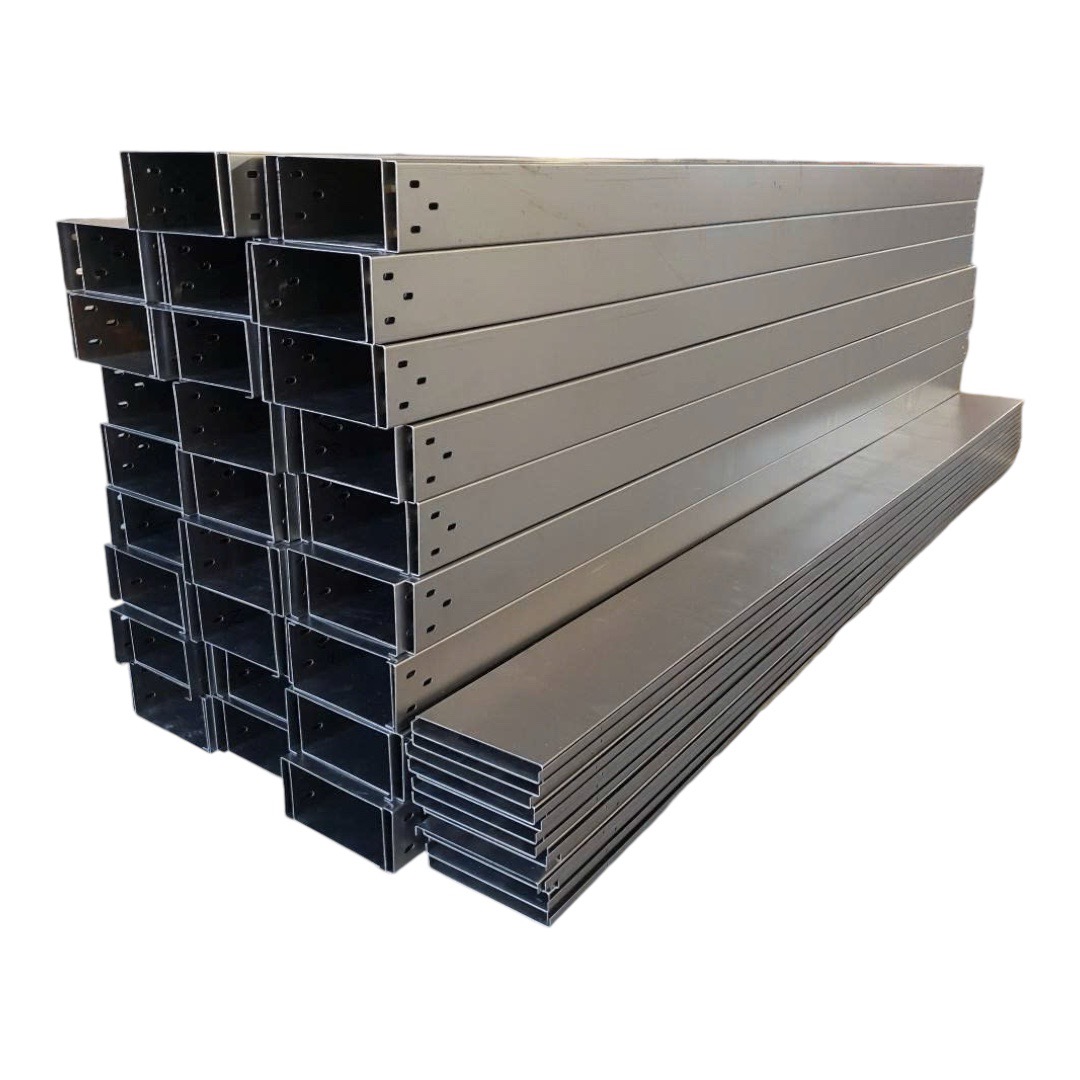

Cable Trunking

    Add to quote
    Category:

    Features:

    • Standard: NEMA Ver.1 : 1999
    • Material: G.I steel, Powder coated steel, Hot – dip galvanized steel, Stainless steel SUS304
    • Thickness: 1.2 – 2.5 mm (For hot-dip galvanized material, the thickness of the cable tray must be 1.5mm or more.)
    • Length: 2400 -2500 mm (The length depends on each different material)
    • Color: At the specific requirements of the customer

    Application: Cable trunking is used for enclosing and protecting electrical cables, wires and conduit systems. It provides a safe and organized way to manage cables in buildings, offices, and industrial settings. Cable trunking can also help prevent tripping hazards and damage to cables, and can make it easier to maintain and upgrade cable systems. It comes in various sizes, materials, and shapes, depending on the specific application and installation requirements.

    Specifications

    Product Code Size (mm) Product Code Size (mm) Product Code Size (mm)
    DMC0505 50 x 50 DMC3505 350 x 50 DMC3010 300 x 100
    DMC1005 100 x 50 DMC4005 400 x 50 DMC3510 250 x 150
    DMC1505 150 x 50 DMC1010 100 x 100 DMC4010 400 x 100
    DMC2005 200 x 50 DMC1510 150 x 100 DMC5010 500 x 100
    DMC2505 250 x 50 DMC2010 200 x 100 DMC6010 600 x 100
    DMC3005 300 x 50 DMC2510 250 x 100
