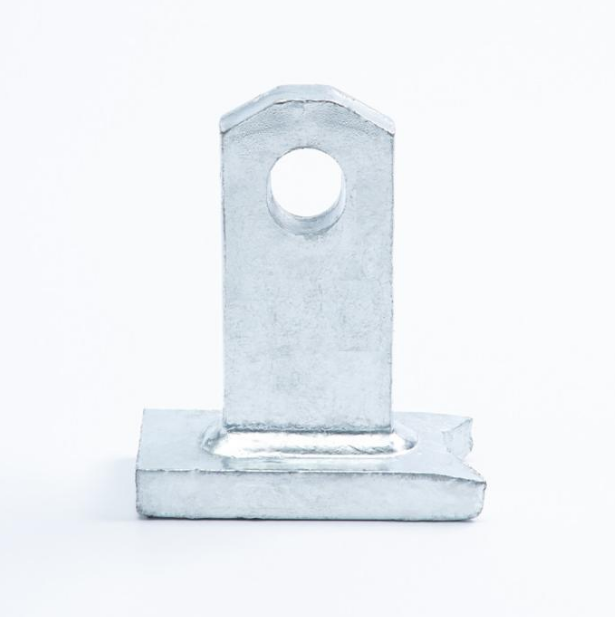

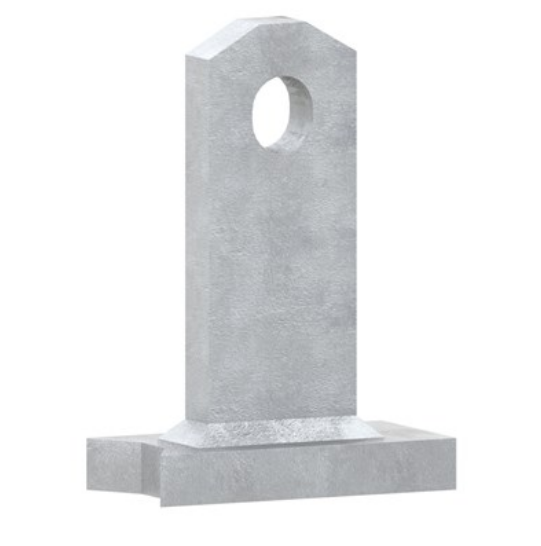

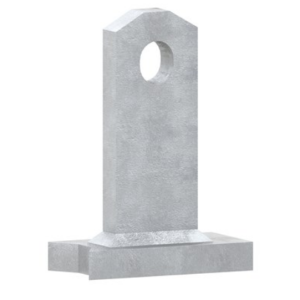

Plate Anchor is designed with a plate welded to the bottom to provide a simple and effective anchor with high pullout strength and low-profile design. The anchor can be utilized for stripping from formwork, face lifts of thin-walled elements, and handling or erection applications.
Material: Q345B,…
Surface: hot dip galvanised/ plain
Load capacity: 2T – 8T
Packaging: 20kg/ woven bag, 1 ton/ plywood box
The Plate Anchor is a simple and effective anchor with high pullout strength and low-profile design. The anchor can be utilized for stripping from formwork, face lifts of thin-walled elements, and handling or erection applications. Recommended installation requires the crisscrossing of minimum 18" long #4 rebar over the lower plate of the anchor in both directions.
Material: High Strength Steel
Finish: HDG
SWL: Safe Working Load
UML/T: Ultimate Mechanical Load in Tension (lbs)

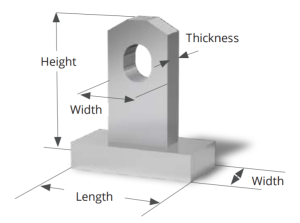

| Item # | Size (T) | Length | Width | Height | Thickness | Weight (lbs) | Lifting Clutch | SWL | Safety Factor | UML/T |
| DTPA2T214 | 2T | 3 5/8 | 1 1/4 | 2 1/4 | 3/8 | 0.79 | PLRC23T | 4000 | 4:1 | 16000 |
| DTPA4T3 | 4T | 3 1/8 | 1 1/2 | 3 | 5/8 | 1.33 | PLRC46T | 8000 | 4:1 | 32000 |
| DTPA4T312 | 4T | 3 1/8 | 1 1/2 | 3 1/2 | 5/8 | 1.49 | PLRC46T | 8000 | 4:1 | 32000 |
| DTPA4T438 | 4T | 4 | 1 1/2 | 4 3/8 | 5/8 | 1.93 | PLRC46T | 8000 | 4:1 | 32000 |
| DTPA8T614 | 8T | 5 | 2 1/2 | 6 1/4 | 3/4 | 5.65 | PLRC811T | 16000 | 4:1 | 64000 |
| DTPA8T718 | 8T | 5 | 2 1/2 | 7 1/8 | 3/4 | 6.16 | PLRC811T | 16000 | 4:1 | 64000 |
