Erection Anchor

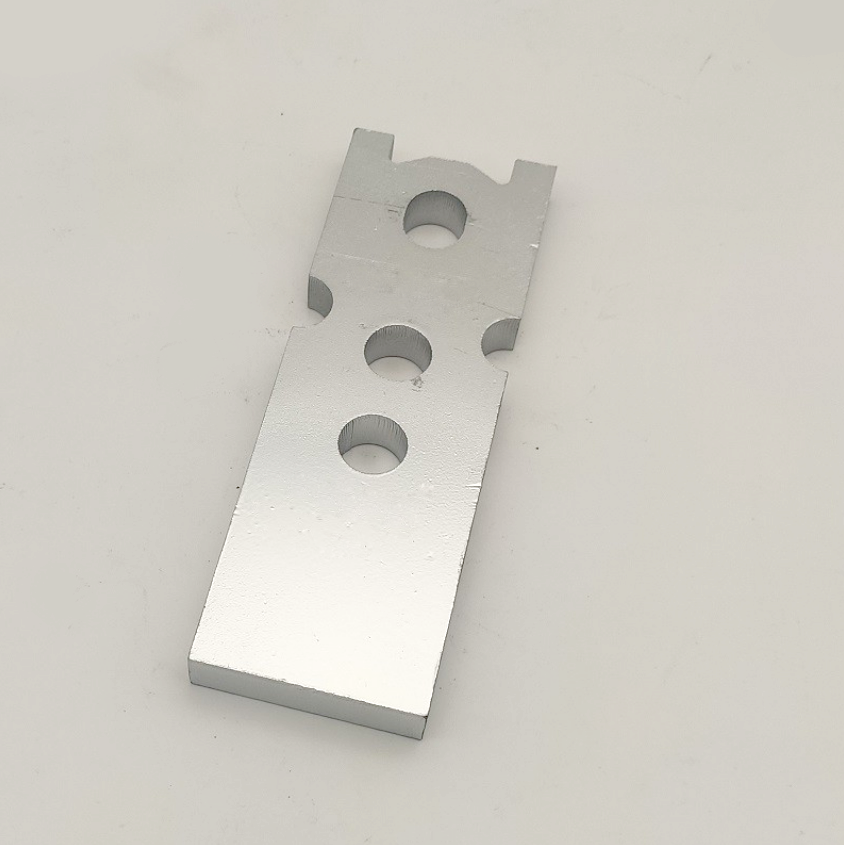

Erection Anchor is designed for horizontal to vertical edge lifting and handling of thin-walled precast elements. The two "ears" on the head of the anchor prevent the clutch from coming in contact and spalling the concrete. The "ears" transfer the shear loads into the anchor and concrete. The shear bar is required with this anchor. A tension bar is typically required to reach the higher tension capacities. Available in 2T, 4T and 8-Ton capacities.

• Material: Q345B, Q345D, Stainless steel 304 & 316
• Surface: Plain, Electrical Galvanized (E.Z.), Hot Dip Galvanized (H.D.G.)
• Delivery Time: Usually 15-30 days for one container
• Packaging: 20kgs per Woven bag, and 1 Ton per Plywood Box or according to your requirement

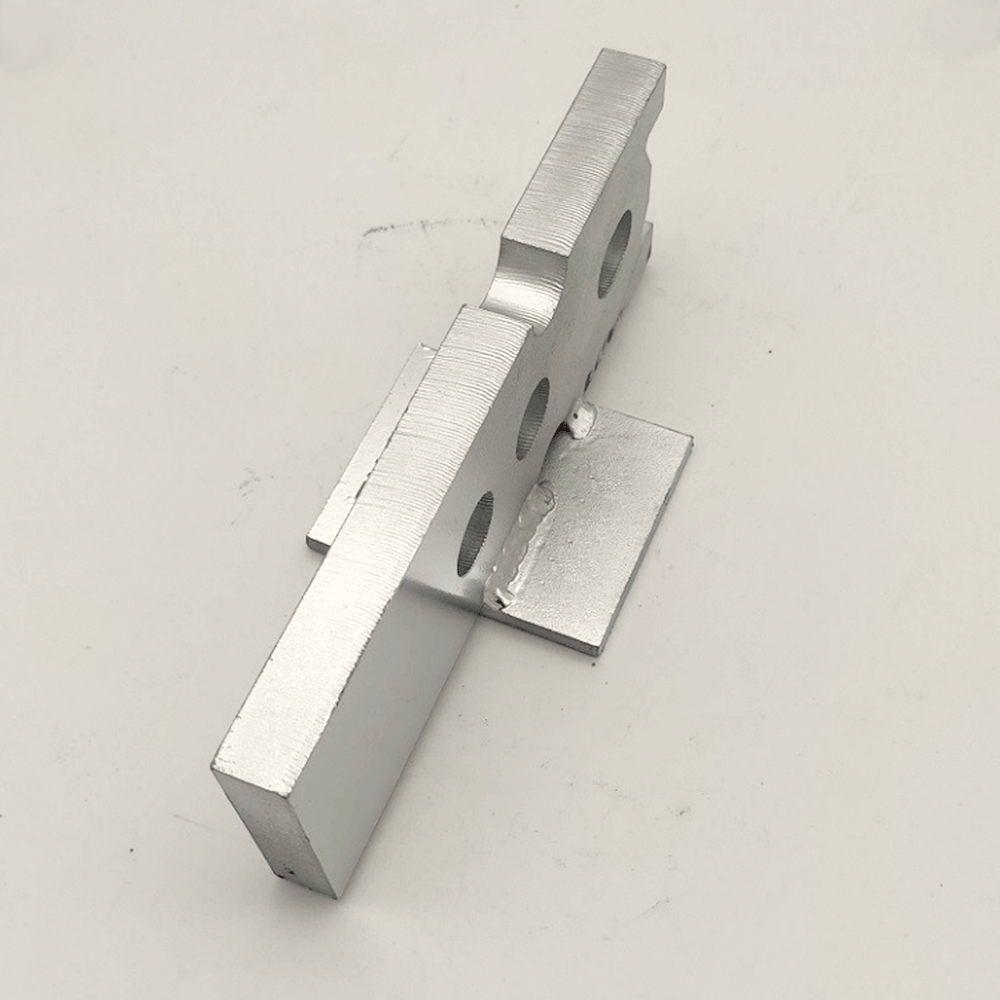

Erection Anchor with Shear Plate is designed for horizontal to vertical edge lifting and handling of thin-walled precast elements. The two "ears" on the anchor head prevent the clutch from coming in contact and spalling the concrete. The "ears" transfer the shear loads into the anchor and concrete.

• Material: Q345B, Q345D, Stainless steel 304 & 316
• Surface: Plain, Electrical Galvanized (E.Z.), Hot Dip Galvanized (H.D.G.)
• Delivery Time: Usually 15-30 days for one container
• Packaging: 20kgs per Woven bag, and 1 Ton per Plywood Box or according to your requirement

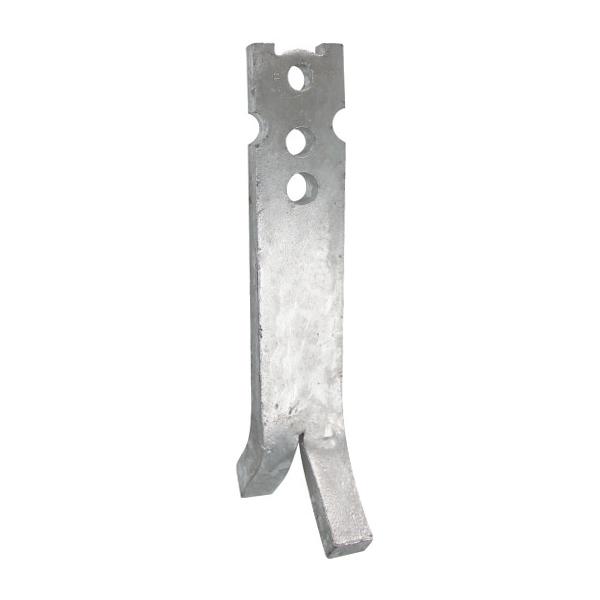

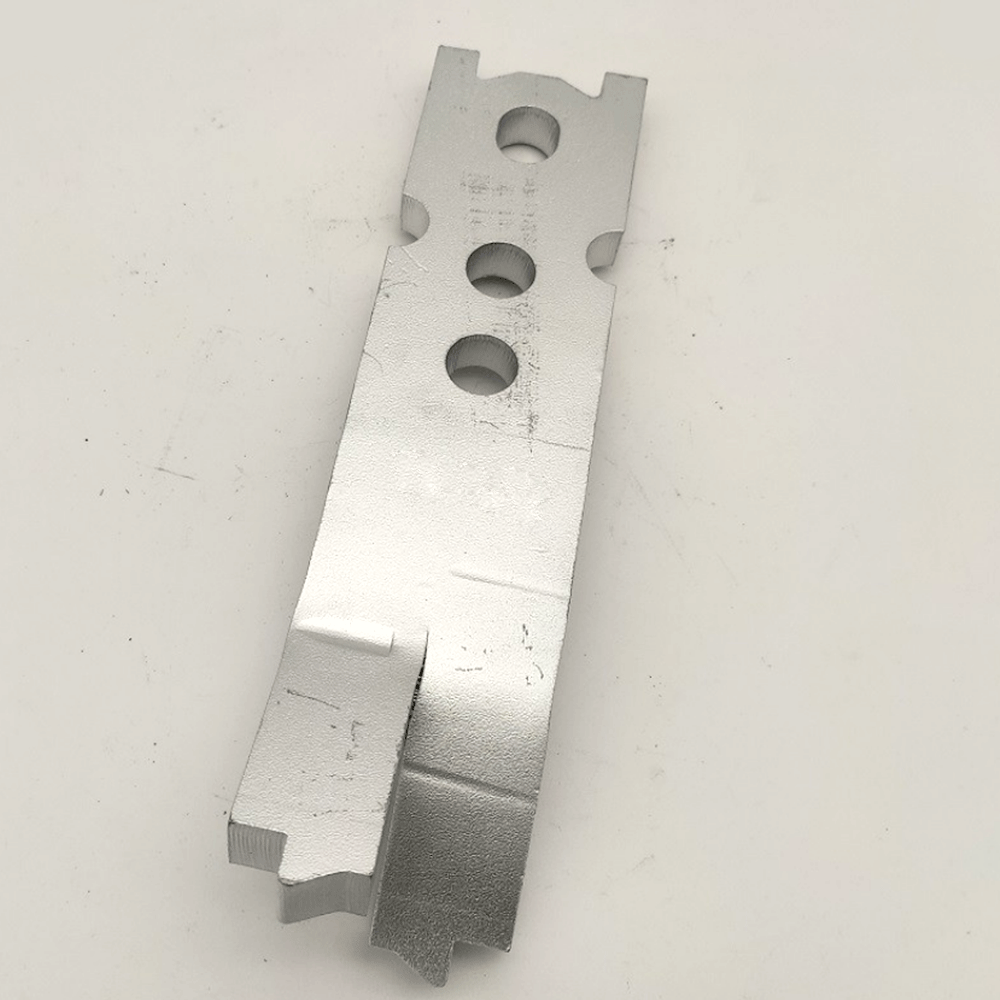

Split Foot Erection Anchor is designed for horizontal to vertical edge lifting and handling of thin-walled precast elements. The two "ears" on the head of the anchor prevent the clutch from coming in contact and spalling the concrete. The "ears" transfer the shear load.

• Material: Q345B, Q345D, Stainless steel 304 & 316;
• Surface: Plain, Electrical Galvanized (E.Z.), Hot Dip Galvanized (H.D.G.);
• Delivery Time: Usually 15-30 days for one container;
• Packaging: 20kgs per Woven bag, and 1 Ton per Plywood Box or according to your requirement;
