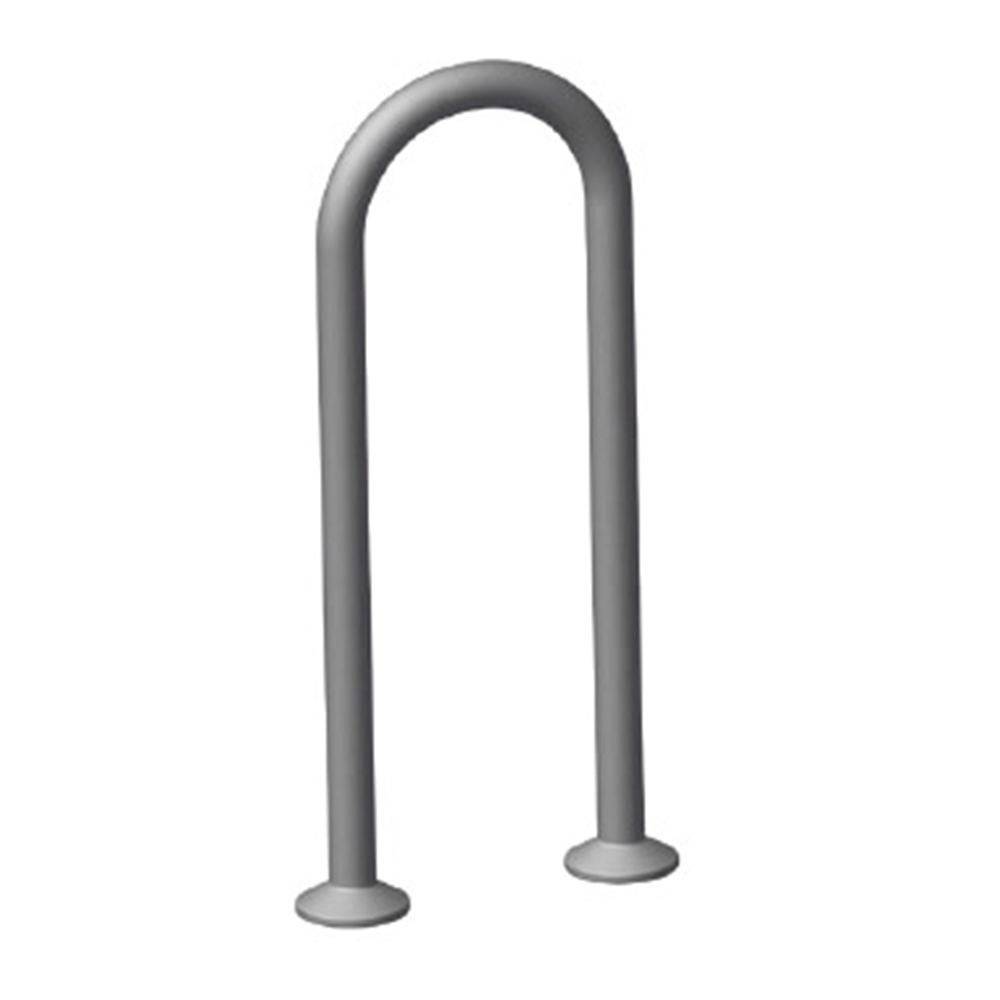

DMS AP (All Purpose anchor, or called R-Anchor) is lifting anchor for retaining walls, bar-shaped elements (purlin, waler,…) or other miscellaneous products. It can replace wire rope anchors or other inexpensive anchor types.
Material: 20Mn2, Q345D,

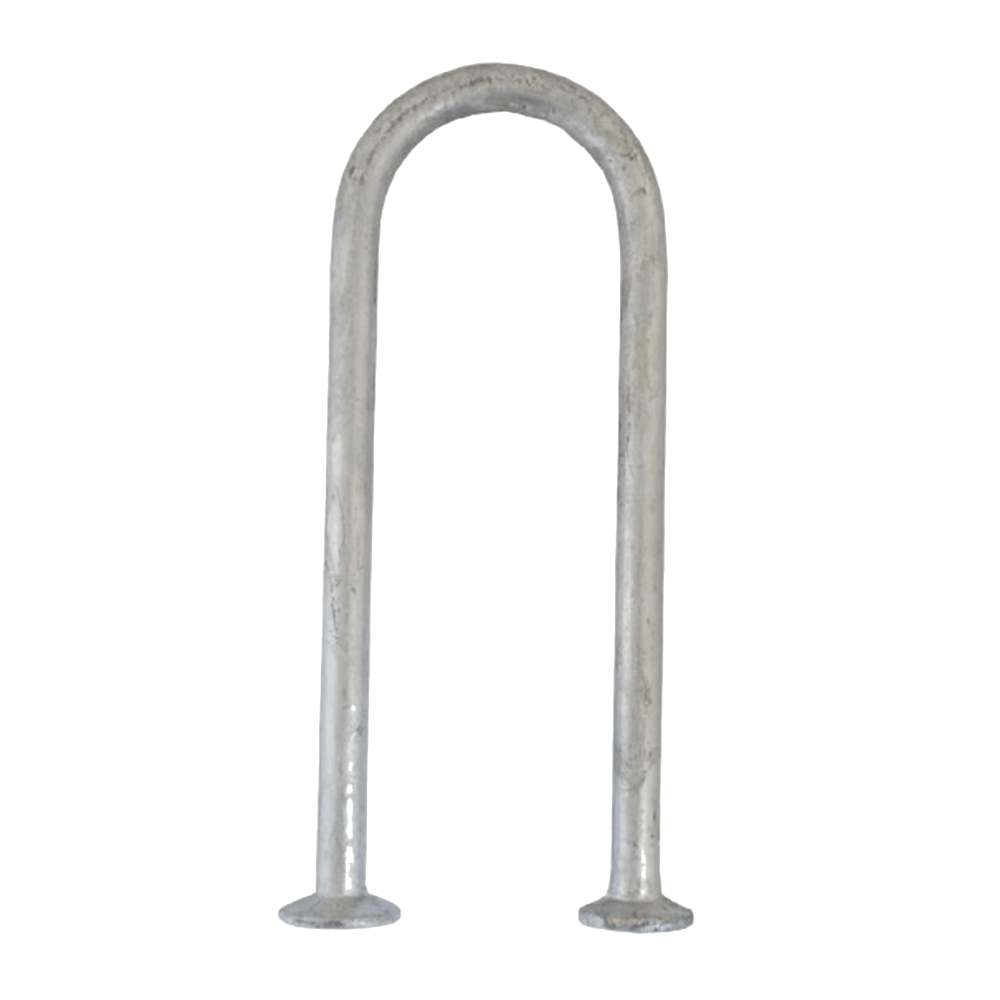

Surface: hot dip galvanised/ plain
Load capacity: 0.7T – 3.4T
Lifting Anchor for Recon retaining walls.
Can replace wire rope anchors in other retaining wall systems and in other miscellaneous products.

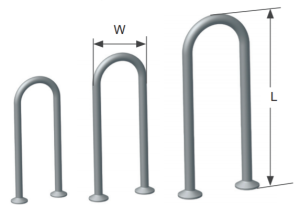

| ITEM # | WIRE DIAMETER | WIDTH (W) | LENGTH (L) | WEIGHT | SWL (LBS) |
| AP-1/4x6 | 1/4" | 2-3/4" | 6" | 0.175 LB | 1600 |
| RECON-2 | 3/8" | 2-3/4" | 7" | 0.51 LB | 4200 |
| AP-7/16x9 | 7/16" | 3-1/2" | 9" | 0.975 LB | 7500 |
Packaging: plywood box
