Spherical Head Lifting Anchor

Add to quote
Category:

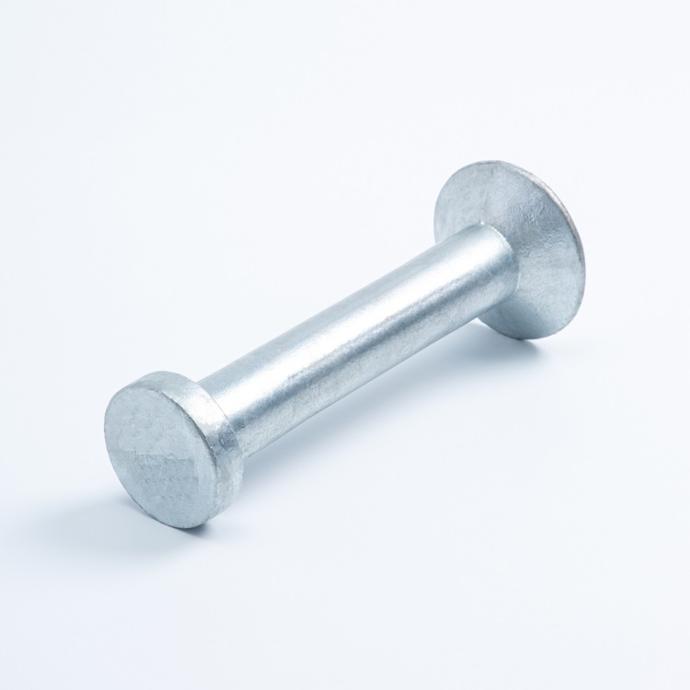

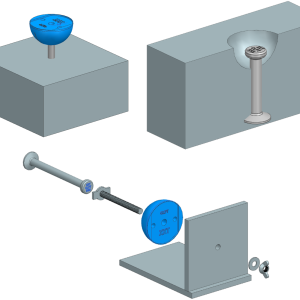

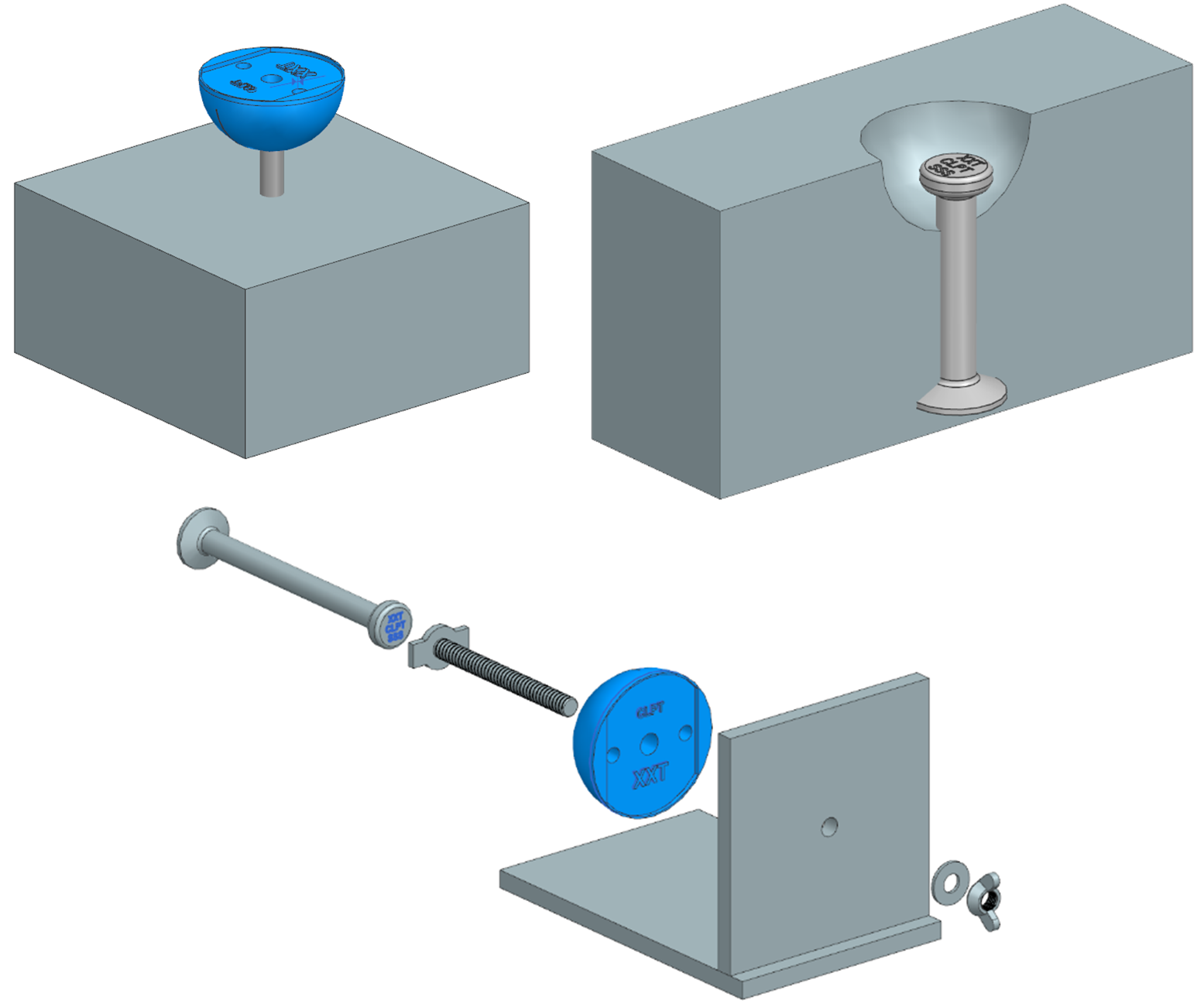

The spherical head lifting anchor (or called Dogbone in different area) is cast into concrete for lifting and transporting precast concrete elements. It is hot forged from 20Mn2 steel. The former head provides spherical seating that the Lifting Eye engages, while a disc-shaped foot is embedded in the concrete. Due to its being a forged part, this anchor product does not depend on welds or thread engagement to develop its safe working load. Forging provides maximum safety with its advantageous material structure and ensure that it can pass the tensile test with a safety factor of more than 3 times before it can be used in the production of precast concrete.

Lifting head anchors are designed and manufactured in accordance with EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205. The lifting head anchors meet the requirements for safe lifting and handling of concrete elements.

Material: 20Mn2, Q345D,

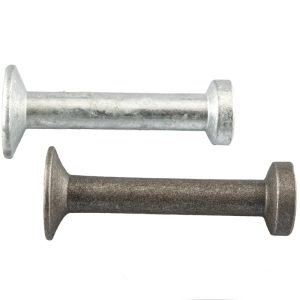

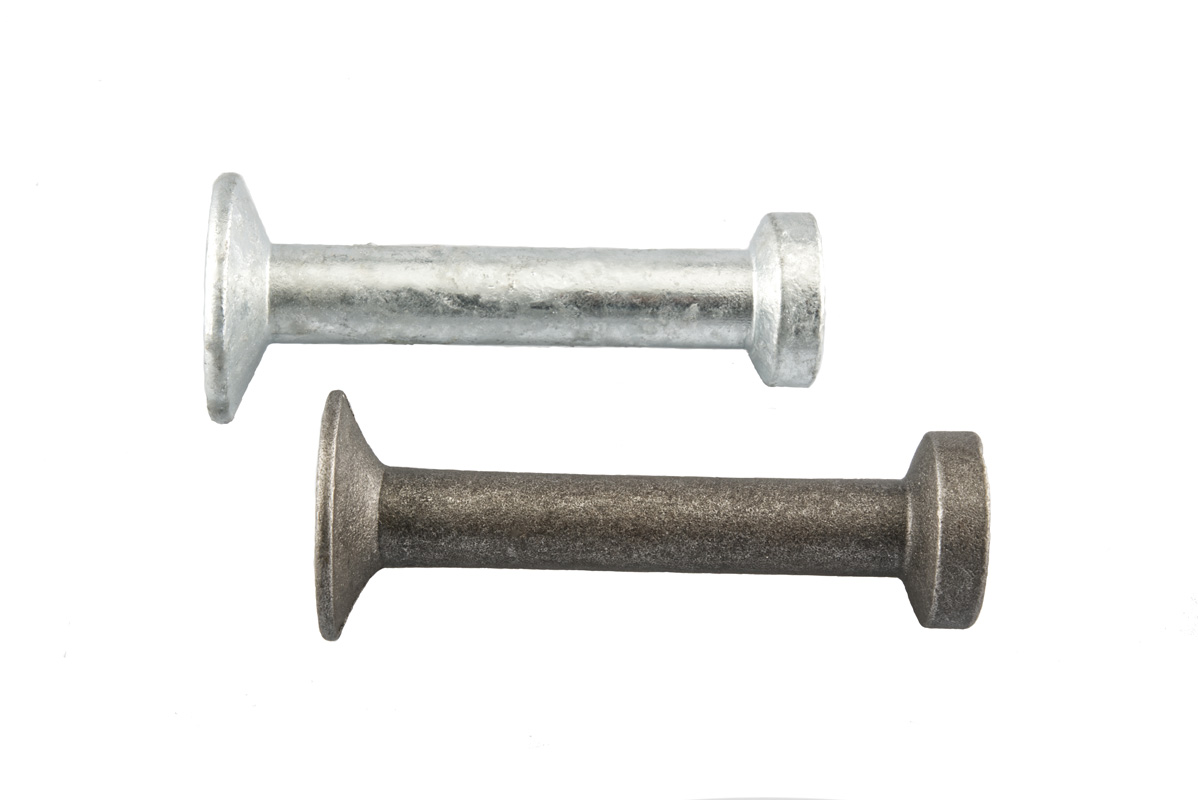

Surface: hot dip galvanized/ electro galvanised/ plain

Load capacity: 1.3T – 32T

Specifications

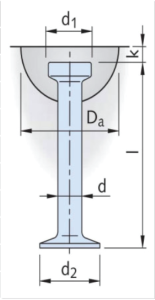

Lifting Anchor d1 (mm) d (mm) d2 (mm) l (mm) k (mm) Da (mm) W.L.L (T)
SLA013 19 10 25 40-240 10 60 1.3
SLA025 26 14 35 45-280 11 74 2.5
SLA040 36 18 45 55-340 15 94 4
SLA050 36 20 50 75-480 15 94 5
SLA075 47 24 60 85-680 15 118 7.5
SLA100 47 28 70 85-680 15 118 10
SLA150 69 34 85 140-840 15 160 15
SLA200 70 38 98 165-1000 15 160 20
SLA320 88 50 135 175-1200 15 214 32



Material: CM490, 20Mn2 (1.0473), Q345D (1.0577), Stainless steel 304 & 316;

Surface: Plain, Electrical Galvanized (E.Z.), Hot Dip Galvanized (H.D.G.);

Delivery Time: Usually 15–30 days for one container;

Packaging: 20kgs per woven bag or 1 ton per plywood box or according to your requirement;

Standard: EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205.
